古典的モード解析では、モーダルパラメータ(固有振動数、減衰比、モード形状)からなる構造の動的性質のモデルは、測定可能な力で構造を励起し、応答/励振比を決定することで得られます。

古典的なモード解析は、徘徊インパクトハンマと固定加速度ピックアップによる単純な可動性試験から、数百の加速度ピックアップによる大型構造物の複数加振機試験まで、多岐にわたります。設計の検証と最適化、認定試験、トラブルシューティング、ベンチマークなど、幅広いテストで使用されています。

システム提案

Classical modal analysis system overview


当社の従来のモード解析ソリューションは、シンプルで直感的なステップで完全なセットアップ、測定、分析をガイドし、クラス最高のモーダルパラメータ推定器と検証ツールのターゲットセットを使用して、最も要求の厳しい状況でも正確で信頼性の高い結果を提供します。

当社のソリューションは、加速度計とフォーストランスデューサ、インパクトハンマー、モーダル加振機システム、LAN-XIデータ収集ハードウェア、プリテスト分析、測定、分析、有限要素モデル相関のためのBK Connect®ソフトウェアを含む測定および分析チェーン全体をカバーしています。当社のソリューションは拡張可能なため、お客様の要件に合わせて拡張できます。

動画 HBKステップサイン

録画ウェビナー: ハンマーまたは加振機によるモード解析

8441-C型 BK CONNECT

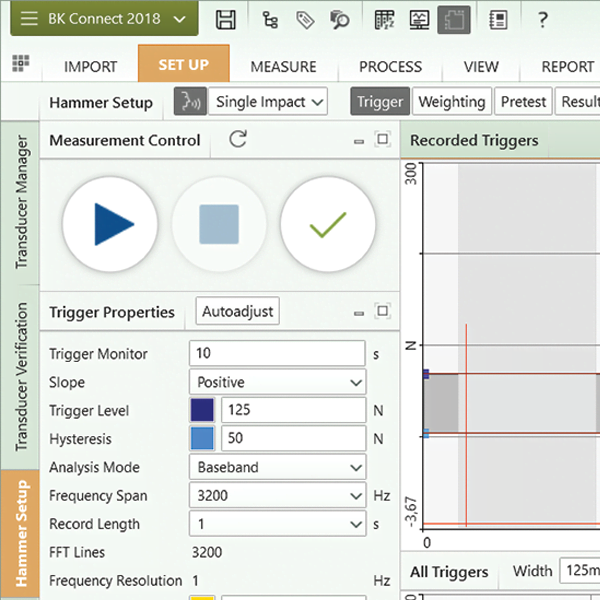

ハンマーインパクトアプレット

ハンマーインパクトは、インパクトハンマ測定を使用して加速度、移動度、コンプライアンスFRFを計算するために必要なすべての機能を含むポイントBK Connect Appletです。

8441-D型 BK CONNECT

構造測定 – ハンマーおよび加振機

古典的なモード解析に使用されるジオメトリ付きリアルタイムハンマーおよび加振機測定用の直感的なソフトウェア。

8442型 | BK CONNECT

高度な正弦測定ソフトウェア

高度な 正弦 Softwareは、線形性研究と古典的リモード解析モード解ステップサインン周波数応答関周波数応答関数ウェア。

8441-D型 BK CONNECT

モジュール式分析ソフトウェア

ジオメトリを作成するための強力なツールと、単一参照モード解析用の分析および検証ツールの総合セットを提供します。

8441-C型 BK CONNECT

高度なモード解析

ジオメトリを作成するための高度ななモード解析ソフトウェアと、ポリリファレンス・モード解析のための総合的な分析および検証ツールのセット。

8441-D型 BK CONNECT

相関分析ソフトウェア

2つのモーダルモデルを相関させるための相関分析ソフトウェア。通常は有限要素モデルと試験モデルで構成されます。

4515-B型

4507型 - 圧電 CCLD 加速度ピックアップ、10 mV/ms^-2、サイドコネクタ、1スロット、ケーブル別売

モード解析測定用に設計されています。

4955型

三軸CCLD圧電型加速度ピックアップ

軽量の三軸圧電式OrthoShear加速度計。それぞれ3つの独立した出力を備え、同時測定が可能です。構造分析測定に最適です。
