Tips for Correct Welding of Strain Gauges

Do you want to weld (and not glue) your strain gauge? Then you will learn the necessary steps here. This is a step-by-step tutorial on strain gauge welding.
services strain-gages Illu 002

How to Weld a Strain Gauge?

You want to weld (and not glue) your strain gauge? Then you will learn the necessary steps here.

Step-by-step Tutorial on Strain Gauge Welding

The following steps outline the installation procedure to provide an overview of how to install a weldable strain gauge:

Step 1- Clean the surface

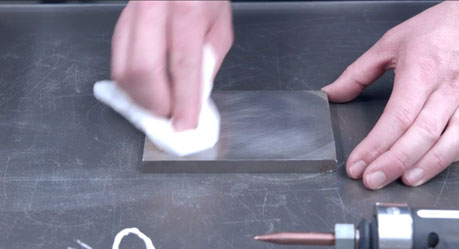

First, clean the surface. Remove bigger impurities with an emery paper to ensure that the surface is purely metallic (which is important for the welding process).

Step 2- Position the strain gauge

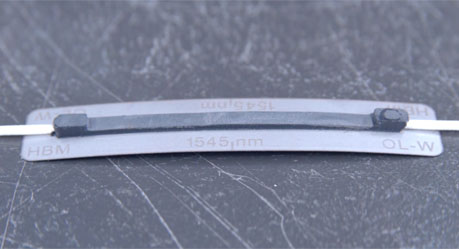

Position the strain gauge on the steel surface.

null
null

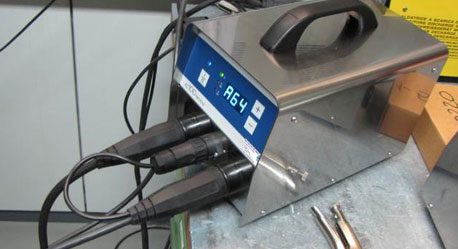

Step 3- Position the pistol of the spot welding device

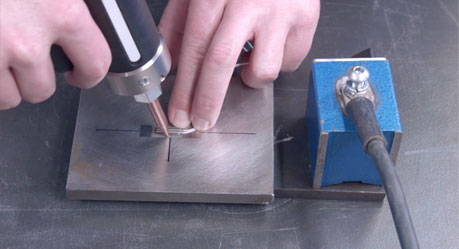

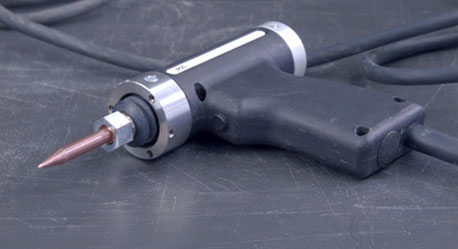

Position the pistol of the spot welding device on the gauge carrier, and perform the spot welding by pulling the trigger.

null
null
null

Step 4- Attach the strain gauge carrier to the metal surface

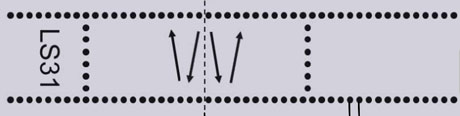

Attach the strain gauge carrier to the metal surface with a series of small welding spots, as shown in the welding spots pattern below.
