By condensing a lifetime of stress and wear into a short period of time, vibration testing and validation can reveal hidden design weaknesses. Vibration testing helps manufacturers to ensure quality, reliability and durability of complete products and their components by providing insights into the inner world of vibration within products, machines and structures.

To ensure products can handle shocks and stresses within their service life, vibration testing comes into play. As an example, this applies to:

  • A mobile phone must be able to withstand bouncing around in a backpack as well as being dropped on the floor several times. If it cannot cope with this general day-to-day use, warranty costs will explode for the manufacturer resulting in a real risk of brand deterioration and of customers looking elsewhere the next time they buy a new phone.
  • A satellite has to be able to survive the excessive vibrations from being launched into space. If it is faulty, the investment in the development and building of the satellite may be jeopardized.

In order to ensure that the products customers receive are intact and fully-functional, it is essential that they can survive the journey from when they are boxed at the factory until they arrive at the end destination. Moreover, beyond merely withstanding short-term physical forces, developers need to ensure that their products will maintain the integrity and quality that represents the brand in the longer term.

Product qualification and verification is done through extensive simulation in the development phases, but simulation is not enough. It is also necessary to do physical testing on prototypes and end-of-line items, both to validate simulated results and to prove product durability to customers.





Ensuring product quality



Vibration tests can reveal design weaknesses that would only become apparent during transport, deployment and use – like a helmet hitting the ground. Some of these tests, such as buzz, squeak and rattle (BSR) on vehicle interiors, can also detect the development of unwanted noise.

For environmental testing such as highly accelerated lifetime testing (HALT) and highly accelerated stress screening (HASS), it is necessary to combine vibration testing with environmental chambers to add the expansion stresses of rapid heating and cooling. These tests are typically conducted on industrial and electronic components and products, on medical equipment and on military hardware.





Vibration test profiles



Where do the actual vibration test profiles originate? Customers, end users or manufacturers who incorporate a component into an assembly, often define vibration test specifications and procedures themselves.

These are typically based on experience and knowledge of which design solutions work well and which don’t. Vibration testing can provide a more structured approach to understanding failure modes and defects that are caused by vibration.





Vibration testing standards



Many vibration testing profiles are defined by standards developed over many years. There are a lot of them and they are often dedicated to specific applications and products. Examples include DIN, ISO, BS, MIL, IEC and ASTM. The use of testing according to standards is especially the case for the aerospace and defence industries. These include MIL-STD-810, NATO STANAGs and AS/EN9100.

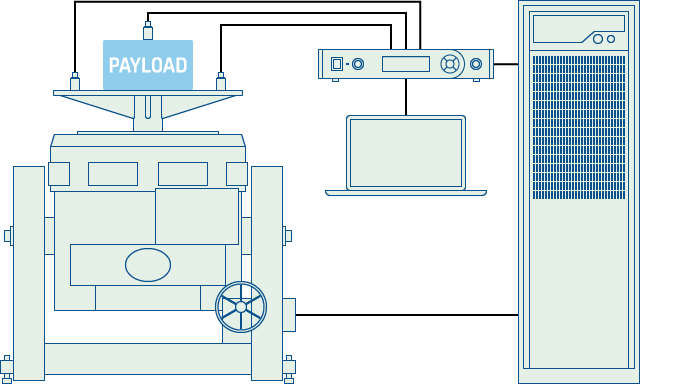

Vibration testing system

Selecting a vibration test system



It is essential that your system is appropriate for the test – able to input the necessary vibration types and able to handle the forces generated when testing specific payloads. Above all, self-monitoring of resulting vibration levels is vital to ensure that your test object is not stressed more than necessary.

There are many ways of configuring systems to meet your testing requirements. If your requirements are not met by these specific suggestions, please explore the vibration testing equipment page or contact your local Brüel & Kjær sales representative to discuss your needs.
