Loudspeaker Testing

Loudspeakers and entertainment systems can be found just about everywhere: phones, cars, TVs, headphones, computers, toys, public announcement systems, and cinemas.

The end user has strong and clear ideas of the performance expected from a product, so it is crucial to transform these expectations into products that satisfy customers. Sound quality measurements help to ensure that customer preferences are met and provide a way to differentiate the product. However, sound quality is not the only parameter a manufacturer may want or need to evaluate:



  • Target setting – Are response, distortion, impedance, sensitivity, directivity, and other values where they need to be?
  • Acoustic material – How do lighter, more durable and less expensive materials affect the sound?
  • Structure – How does a change in cabinet or component design affect the vibrational and acoustic properties of a speaker?
  • Production – Can a manufacturer rely on pass/fail results and receive a quality product?

The number of tests involved in the verification of performance specifications and requirements can be overwhelming for an R&D engineer with a deadline and budget to meet. That is why in the industry, standardization, automation, data correlation and ease of use are such hot topics in R&D testing. Providing these features without compromising reliability and precision, means engineers can meet their targets quickly and efficiently.

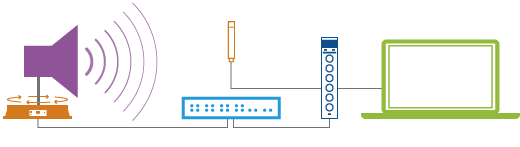

System suggestion

loudspeaker testing

For loudspeaker testing we recommend PULSE Loudspeaker Test Application BZ-5603. This software supports measurements on loudspeakers, using an instrumentation set-up that includes a turntable to automatically record the directional characteristics of the test object. This application automates measurements of frequency response, harmonic distortion, directional response and calculation of Thiele-Small parameters using the simple impedance, added volume, added mass or laser methods.

TYPE 4971-H-041

1/2" CCLD Pressure Field Microphone Set with BNC Connector

CCLD Pressure-field microphone for coupler, random-incidence and free-field measurements with 90° incidence and a frequency range of 5 Hz to 20 kHz

Type 4191

½-inch Free-field Microphone, Externally Polarized, 3.15 Hz – 40 kHz

Free-field microphone for high-precision, free-field measurements with a wide frequency range/bandwidth of 3.15 Hz to 40 kHz.

TYPE 3160

Generator Module

Designed for applications where system excitation is required, such as audio and electro-acoustic test applications.

TYPE 4930

Artificial Mastoid

Artificial Mastoid designed for the calibration of bone-conduction hearing aids by simulating the mechanical impedance of the human mastoid.

Type 2735

Measurement Power Amplifier

A compact, highperformance, 2 × 35 W power amplifier designed for electroacoustic and general-purpose applications.

TYPE 9640

Turntable system

Designed to rotate a test object, such as a loudspeaker, microphone, or hydrophone, for measurement of directional response.

BZ-5602, BZ-5603, BZ-5743 and BZ-5744

Automated test procedures for electroacoustic devices

Dedicated PULSE testing software applications for specific products including microphones, speakers and headsets.
