BAE Systems - World-Class Naval Engineering

BAE Systems is a global defense, aerospace, and security company employing people in over 40 countries and working closely with skilled partners. Providing a competitive edge in the air, at sea, and on land, as well as in the cyber world, BAE Systems designs, manufactures and supports complex surface ships, submarines, torpedoes, radars, and command and combat systems.

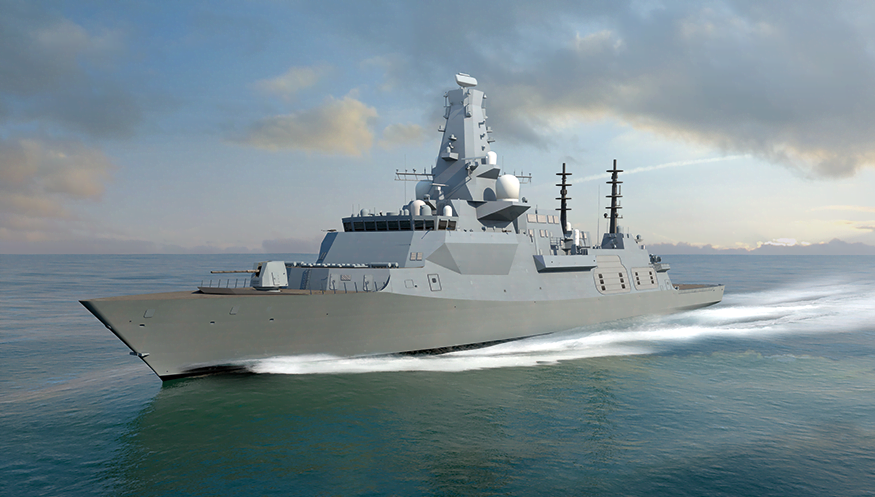

Designed to protect powerful new aircraft carriers, the Type 26 Frigate is a cutting-edge warship that will replace the UK’s Type 23 Anti-Submarine Warfare (ASW) Frigates. Designed for a service life of at least 25 years, eight Type 26 Frigates will form the backbone of the Royal Navy surface fleet well into the 2060s.

The Acoustic Signature of a Ship

When life at sea in hostile conditions depends on not being detected, the importance of acoustic stealth cannot be underestimated. Because of its ASW role, where the Type 26 Frigate must protect the fleet against potential intruding submarines, it is very important that the ship is quiet and that the crew is able to monitor exactly how much noise and vibration is being generated.

The acoustic signature – the noise and vibration a vessel and its on-board equipment and systems make in the water – is a key requirement for such vessels and it must be kept as low as possible in order to avoid detection.

Acoustic Detection and Monitoring

To maintain acoustic discretion, all noise sources of a vessel are taken into consideration, including personnel, on-board equipment, and cavitation, as well as the radiated noise signature of the vessel as a whole. Reducing a ship’s radiated noise signature is a key element to its tactical deployment, and a self-noise monitoring system is essential to manage the ship’s acoustic signature.

BAE Systems takes acoustic stealth very seriously and following the success of several earlier projects have again selected Hottinger Brüel & Kjær to deliver a commercial off-the-shelf (COTS) self-noise monitoring system (SNMS), also known as hull vibration monitoring equipment (HVME), for the first three Type 26 Frigates.

A Scalable Self-Noise Monitoring System

Based on the PULSE™ scalable platform, the self-noise monitoring system is made up of a network of COTS equipment and includes transducers, data acquisition, and vibration measurement and analysis capabilities.

The acoustic signature is managed by monitoring structure-borne vibration and reviewing the vibro-acoustic information. This helps ship staff to control noise sources coming from machinery, hydrodynamic flow, and propeller cavitation. The system provides an instant overview of the radiated sound of the ship via permanently installed sensor arrays mounted internally on the ship’s structure, and the continuous vibration monitoring of the ship’s hull helps the crew to maintain a low noise signature.

The system offers some huge benefits: when space on a warship is at a premium, the practically zero footprints of the solution are an important factor. The data acquisition units can be hidden in small spaces, and the network architecture provides installation flexibility and radically reduces the amount of cabling throughout the ship, which in turn provides a valuable cost and weight reduction.

BAE Systems also appreciates that the off-the-shelf system is a complete, integrated solution – it covers the entire measurement chain. COTS solutions are advantageous because they ensure customers avoid outdated technology, which in the naval engineering world is not only inefficient but can dangerously lead to the inability to carry out prescribed operations.

In addition, HBK's partnership and its ability to manage this program over the entire lifetime of the ship, which is at least 25 years, were important selection criteria for this project. The system is an integrated part of Type 26 Frigate, and the long-term commitment includes responsibility for integrated logic support, including the provision of spares and support.

The self-noise monitoring system for the first three Type 26 Frigates ensures that BAE Systems gets a commercially mature technology with an open architecture. And it means that BAE Systems is always up-to-date with hardware and software and that the ships have a cutting-edge, acoustic-stealth solution well into the long-term future.

frigate and helicopter from BAE Systems, a global defence, aerospace, and security company, navigating at the sea

About T26 Global Combat Ship

Top speed: 26+ knots

Range: Excess of 7,000 nautical miles in Electric-Motor (EM) drive

Accommodates: 208 crew and 157 core complement

Main dimensions: Displacement: 6,900 tonnes

Length: 149.9 meters

Maximum beam: 20.8 meters

Entering service: In the mid-2020s
