HBK Enables Jungheinrich to Take Product Quality to the Next Level

jungheinrich, germany

Introduction

Jungheinrich is a world leader in fork lift truck, warehouse, and material flow technology. The listed company provides innovative warehouse logistics solutions offering high functionality, reliability, and excellent quality. These are the result of extensive testing prior to and also after the market launch of new products. Jungheinrich, for instance, relies on extensive product testing at the customers’ premises. The insights about actual loads in day-to-day operation gained under real conditions are not only used to validate the values forecast during product development, the specialists also use the practical test results to continuously improve their products. For measurement and analysis, Jungheinrich relies on high-performance solutions from HBK such as the universal QuantumX data acquisition system.

chevron_left
chevron_right

EJE Series Collects Practical Data in “Undercover Operation”

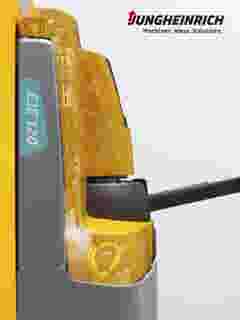

The innovative EJE series of high-performance electric pedestrian pallet trucks from Jungheinrich allows customers throughout the world to load and unload trucks and to transport pallets over short distances. The pallet trucks feature a maintenance free three-phase AC motor and particularly efficient, easy and, safe handling in confined spaces. Furthermore, the innovative EJE 116 to 120 pedestrian trucks, regardless of their compact dimensions, offer a striking capacity of up to 2 tonnes. The EJE series’ outstanding performance data is, amongst other things, a result of the fork lift trucks’ excellent quality and continuous optimization. This is why the company performs extensive series of tests, not only during development. As part of their quality assurance and further development program, Jungheinrich collect valuable data directly on site at select customers - upon consultation with the customer and in compliance with applicable data protection guidelines. Jungheinrich acquires the required data on the actual device structure in practical use and virtually “undercover” - without any effort to the user or loss of performance. The measurement electronics, invisibly integrated in the pallet truck, autonomously takes the required measurements in day-to-day use.

Clever product testing solution

When it comes to load data acquisition, Jungheinrich relies on HBK. The QuantumX CX22B-W stand-alone data recorder plays a key role in this.

Everything from a single source

Jungheinrich has been using reliable test and measurement equipment from HBK for several years now. On the one hand, this is due to straightforward collaboration and fast response to inquiries. On the other hand, HBK provides everything from a single source, complete solutions for the entire measurement chain as well as components offering universal use, scaling, and convenient configuration. Moreover, HBK test and measuring equipment is outstanding for its reliability and high performance. One example of this is the QuantumX data acquisition system used in field testing of EJE type series electric pedestrian pallet trucks: It provides compatibility with the Jungheinrich CANopen bus and, in addition, fast disassembly, high sample rates and up to 512 GB memory capacity. Wireless routers can easily be connected via Ethernet at any time.

HBK on Board with Jungheinrich Quality Assurance Program

Jungheinrich relies on HBK in determining the load data of all vehicles and type series in practical use. The QuantumX CX22B-W stand-alone data recorder is the heart of the test and measuring equipment used in this “undercover operation”. The compact measurement modules are  distributed and invisibly integrated behind the pallet truck cover. The data recorder stores the test data that is either supplied by strain gauges, pressure transducers, current, voltage, acceleration, and temperature sensors or taken from the CAN bus directly in the device. Neither connection to a PC nor user intervention is required - the system operates fully autonomously in the background. After about two weeks regular day-to-day use, the real-life data is read out on site at the customer’s premises. The goal for the future is to implement this via remote access (cellular network) to further reduce personnel requirements. The data packages are subsequently analyzed using nCode GlyphWorks software from HBK, a powerful tool for test data analysis in engineering with a focus on durability and fatigue life analysis. The analysis results allow valuable conclusions to be drawn about how loads affect the structure of a product in practical use. Both the values forecast within the scope of simulations in the development stage and the values determined in the test bench can thus be validated on the basis of actual data acquired in practical use. In addition, the insights gained under real-life conditions provide a basis for the further improvement of products from Jungheinrich.
