Since September 2011, an exciting EUDP project has been underway to develop a practical way to detect, localize and predict damage to wind turbine blades. The associated cost of maintaining and repairing blades is a very real issue for wind farm operators and so far no remote inspection method has offered a viable solution. Thanks to the project, the best answer could lie in sophisticated algorithms using vibration measurements with considerable potential above and beyond the wind industry.

Reducing the costs associated with wind energy is essential to becoming competitive and attracting investors. The industry is faced with various challenges in this regard, especially as the turbines (and their blades) become bigger. Wind farms are placed offshore, new materials and designs are introduced, transportation issues arise due to sheer size, and manufacturing defects occur – to mention just some of the challenges.

As the use of wind turbines has become more widespread, so has our understanding of the stresses and strains they endure over prolonged exposure to nature. A wind turbine is made up of thousands of components integrated into a finely balanced piece of engineering; any defect can result in a significant drop in performance, leading to costly structural failures, safety issues and system downtime. Even though some parts of a wind turbine are monitored, such as the gearbox and main bearing, there is currently no viable means to check the integrity of the blades beyond expensive manual inspections, typically once a year. OEMs and major industry operators such as DONG Energy, EON and Vattenfall are researching this, but so far any ideas to automate the process have met with limited success. For this reason, the EUDP initiated a major project with Vattenfall, DTU Wind Energy and DTU Compute, Bladena, Total Wind, and Brüel & Kjær to find a solution.

knowledge, resource center, articles, wind turbine maintenance

Blade maintenance – a necessity, not a luxury

Even though they are designed to last for 20 years, damaged or faulty wind turbine blades can reduce overall productivity and have to be repaired. By carrying out a thorough yearly inspection, the operator reduces the risk of a catastrophic failure by highlighting issues and taking action before it becomes a serious problem that could result in costly repairs and lost revenue.

Blade damage is due to wear and tear from the natural elements and because of manufacturing defects and transportation. The most typical damage appears in the form of cracks and delamination. Wind turbine blades can be damaged or degraded by several factors.

Over time, sand, ice, rain, sun and lightning constantly strike the moving blade and have serious adverse effects on its leading edge and structure. Worse still for off-shore installations, salt crystals can be a major cause of erosion and cause moisture diffusion within the blade structure. As a result, regular inspections and ongoing maintenance are not simply a luxury, they are a necessity.

Lasse Lohilahti Mølgaard PhD, M.Sc. EE Senior Researcher, DTU Compute

Manual inspection shortcomings

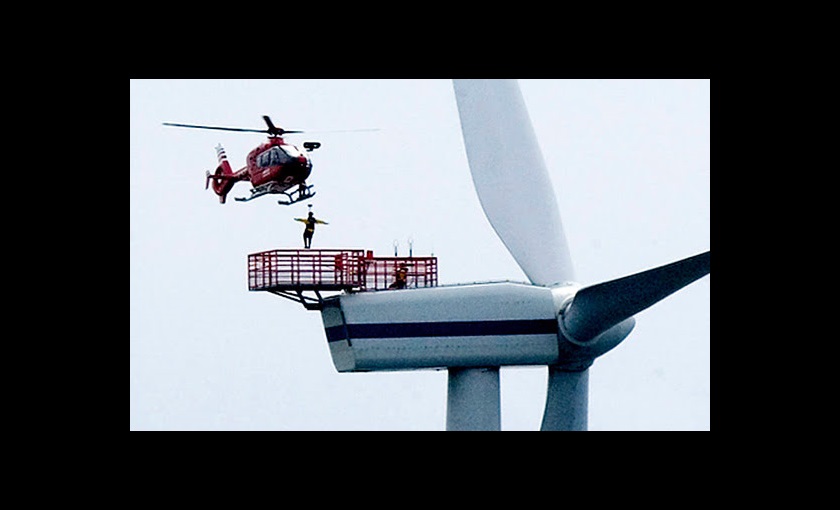

The wind industry is growing fast – turbines and their blades have increased in size and numbers, and as a result, the industry demands greater equipment reliability. Consequently, wind farm operators and OEMs have been searching for a condition monitoring system capable of detecting adverse conditions and predicting failures, in order to help minimize risks and prioritize repairs. Currently, there is no real-time health overview of blade fleets. For many operators, manual inspection continues to be the method of choice to determine the health of a blade. However, for many reasons this is not an effective solution. Manual inspection involves a hands-on, visual check of the rotor blades that must be conducted by highly qualified technicians hanging from ropes or using special working platforms.

In both cases, the methods not only require specialists well trained in both blade engineering and rope climbing (who are few and far between), but they also depend entirely on the ability to spot damage with the naked eye.

knowledge, resource center, articles, wind turbine maintenance

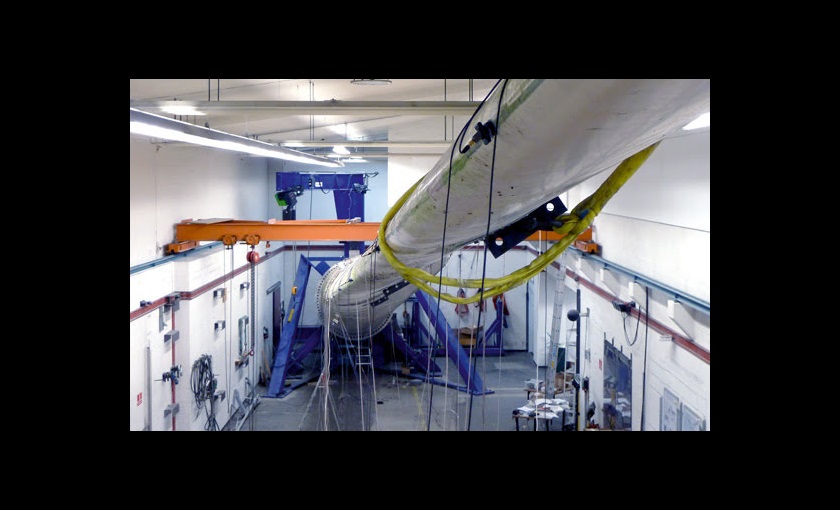

A 34 metre wind turbine blade in the test facility at DTU’s Wind Energy department’s test facilities, Roskilde.

knowledge, resource center, articles, wind turbine maintenance

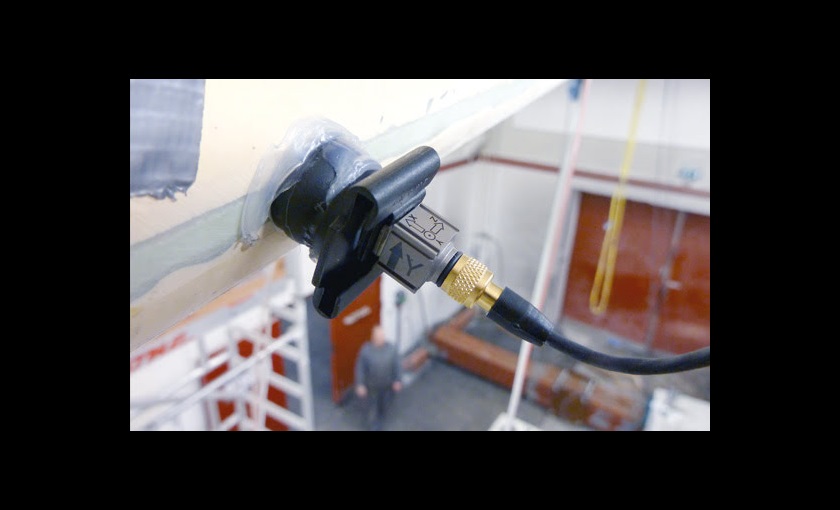

A triaxial accelerometer mounted on the leading edge of a blade.

This means that the inspection process is limited to the surface of the rotor blade or tapping the blade to get an idea of its structural integrity, both of which are widely open to human error. Furthermore, damage can occur before or right after inspections and each blade has to be checked individually, which is time-consuming, costly and dependent on weather conditions.

This kind of maintenance is also an expensive process due to system downtime. During inspections, the wind turbine has to be withdrawn from service for up to a full day and the process can only be performed under certain conditions (such as wind speeds of less than 10 m/s) by industrial climbers – in groups of three, due to safety rules. Worse still, these issues are magnified for the offshore sector, where wind farms are considerably larger and the use of lifts and platforms is very difficult due to the swell of the sea. The marine environment itself makes working conditions psychologically and physically stressful and often the turbines are up to 200 km from land, so the timeframe for working on location is limited, and workers must be transported there by boat or helicopter every day.

Taking up the automation challenge

As a result, a variety of automated methods and technologies – known as structural health monitoring (SHM) – have been tried and tested in an attempt to find a better approach. SHM is a relatively new field, and there are only a few projects already running in other industries, such as monitoring bridges and buildings in seismic areas. Some of the techniques used for SHM elsewhere have been adapted for wind turbines with limited success, including strain gauges, acoustics, lasers and thermography.

The EUDP project to develop an automated solution included partners with specific skills and qualifications:

  • Vattenfall, Bladena and Total Wind: overall problem formulation, blade expertise, maintenance expertise
  • Total Wind: damage repair
  • DTU Wind Energy: mathematical modelling, access to a test wind turbine and test facilities
  • DTU Compute: statistical models, decision-making algorithm, robustness to noise, and changes in environmental conditions
  • Brüel & Kjær: overall project design and management, measurement equipment, long-term monitoring, damage detection algorithms and prototype design and implementation

Working together, the teams behind the EUDP project developed a novel approach to the problem. This led to an effective potential solution for SHM of wind turbine blades that also has considerable potential above and beyond the wind industry. The approach was based on the premise that any structural change to the wind turbine blade (i.e., damage) will cause a vibration pattern that deviates from normal. This results in unusual vibrations that can be detected by sensors on the blade and measured; any deviation from the norm would suggest that damage has indeed occurred.

knowledge, resource center, articles, wind turbine maintenance
Lasse Lohilahti Mølgaard PhD, M.Sc.EE Senior Researcher, DTU Compute

Initially, operational modal analysis (OMA) appeared to be an excellent tool for measuring these changes. However, tests showed that the process was not sensitive enough to detect and localize where the damage had occurred, and an alternative method was developed.

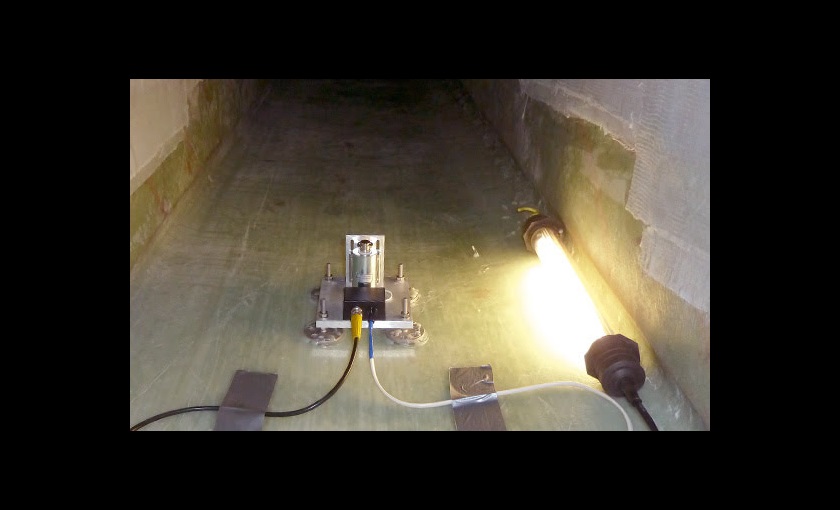

In this new method, mechanical energy is introduced into the blade by means of an electro-mechanical actuator and the resulting vibrations are measured using accelerometers placed along the blade. This technique proved so effective it allows for an opening as small as 20 centimetres to be detected on a blade 34 metres long, even in the presence of environmental noise.

Algorithms form the heart of the new method. To distinguish between actual damage and merely the effects of environmental noise, these algorithms are based on statistics collected from hundreds of careful measurements taken when the blade was in an undamaged state, during as many different weather and operating conditions as possible (a process known as ‘model training’).

Working toward an intelligent, accurate solution

This method points the way to a future solution that will enable vibration data to be gathered, pre-processed and transmitted wirelessly to the ‘cloud’, which allows for quick data transfer, storage and processing. Based on advanced algorithms, several levels of analysis take place in the cloud, and if damage is detected, a report is issued to the wind farm operator via a Web-based interface that details which turbine
blade is affected and to what extent.

Blade health monitoring will optimize the inspections and maintenance schedules, by providing the owner/operator with a unique ability to get a daily updated overview of the health of its asset, and constantly assess which blades need maintenance and when. This results in the ability to optimize a scheduled maintenance programme that decreases the cost of energy due to:

In-time inspections

  • Ability to optimize schedules in both peak and off-peak seasons
  • Technicians arrive ready to inspect blades already identified
  • Crane and/or vessels are mobilized for multiple inspections and sites
  • Repair of problem before compounding
  • Report/documentation/complete maintenance record in database, which improves knowledge and understanding of fleet health
  • Daily detailed assessment view that provides insight and ability to react to changes in health before damage compounds and becomes catastrophic
knowledge, resource center, articles, wind turbine maintenance
knowledge, resource center, articles, wind turbine maintenance

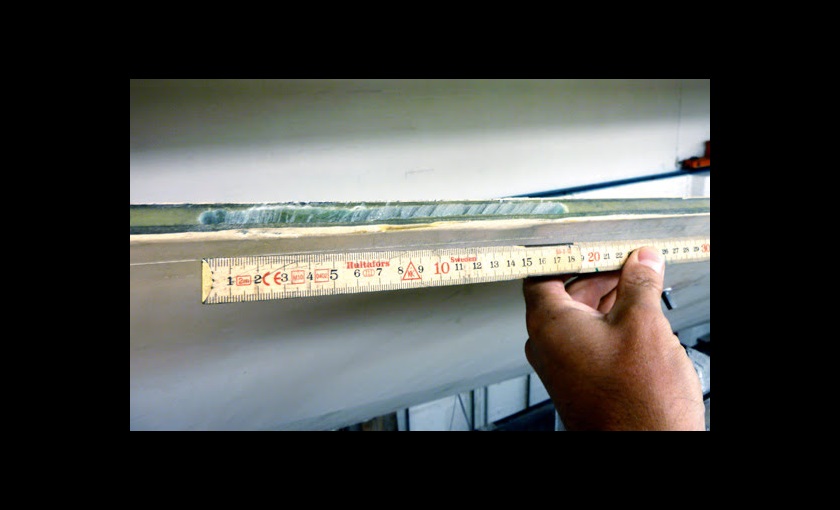

The suggested technique is able to detect the shown damage: a 20 cm opening on the blade’s trailing edge, which is relatively small compared to the 34 meter length of the blade.

Going a step further

Typically, damages are categorized according to guidelines which determine the necessary follow-up, for example, in one category repairs must be immediate, while in another within a three- or six-month period. In order for the operator to categorize the detected damage and make a decision regarding the follow-up, he needs to know where on the blade the damage is located and if it is progressing or stabilized. In effect, the new method constantly monitors the overall health of the blades and alerts the operator when a fault occurs, enabling them to prioritize repairs and schedule a maintenance plan before it becomes a more serious problem.

Currently, the algorithm provides a rough damage localization. The next stage of the project is therefore to develop even more advanced localization algorithms that can deduce exactly where the damage has occurred, even in its inner substructure. When done, this will help to give a more detailed overview of the blade’s health and enable operators to design the repair and maintenance strategy in a more cost-efficient way.

Healthy blades, happy operators – and beyond

The outcome of the project represents a great step forwards for the industry and offers an invaluable new technique that will help operators maintain wind turbines at far lower costs and with improved reliability and efficiency. The solution fits all the criteria for an ideal SHM system, which is able to detect, localize and immediately alert the owner of damages in the blades. The system can be incorporated in new blades, or retrofitted into existing ones. At this stage the project has produced a working prototype that is currently being tested on a real turbine. Further testing and development is required together with either an OEM and/or owner to make the working prototype into a commercial application.

In principle, the technique is directly transferrable to other industries such as aircraft, satellite and space. Other potential areas could be hydro-electric and highspeed rail. Of course, the future will reveal its true operational and commercial potential, but for now we’ll have to wait and see which direction the wind blows.

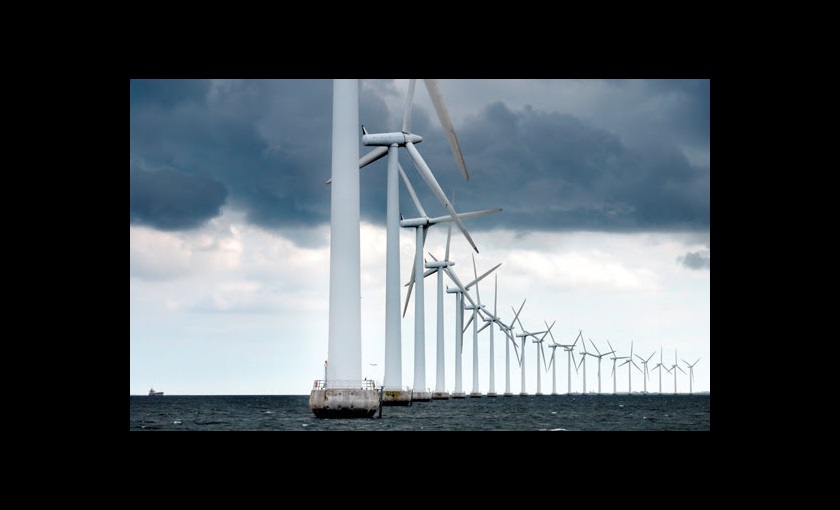

Wind - a growing industry

During the first six months of 2014 alone, Europe grid-connected 224 offshore wind turbines in 16 commercial wind farms (there are also 310 wind turbines awaiting connection). The increasing use of wind farms isn’t limited to Europe, with annual worldwide market growth of almost 10% and cumulative capacity growth of about 19%, as indicated by 2012 figures.

Inside the algorithm

The algorithm that determines whether or not the blade has become damaged compares the current vibration pattern against those of an undamaged blade. If the results are the same, all is well and we can be sure that the blade is fine; in contrast, if the measured states differ, we can suspect that damage occurred and that blade is in need of closer inspection and repair.

Acknowledgements

Photo courtesy of Total Wind.

By Dmitri Tcherniak, PhD, Research Engineer, Brüel & Kjær & Jens J. Hansen, Global Key Account Manager, Brüel & Kjær.

About the EUDP Project

knowledge, resource center, articles, wind turbine maintenance

The EUDP is a Danish organization that supports the development of energy technologies that create growth, secure supply and enable Denmark to become independent of fossil fuels. With a budget of roughly EUR 250 million each year, the EUDP has been instrumental in helping Danish businesses create world-leading solutions to both local and global energy issues.
