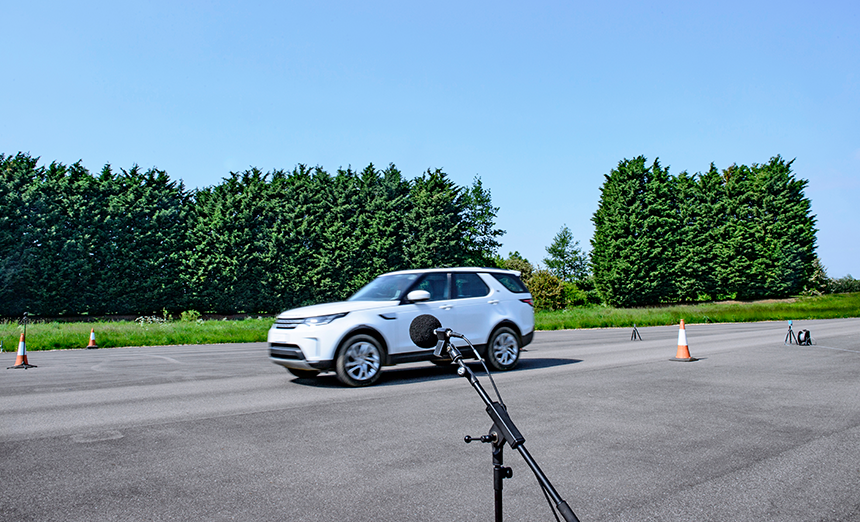

車両が騒音排出仕様に適合していることを証明するには、国際規格で定められた手順に従って測定する必要があります。これらは、典型的な都市交通条件下でのパワートレインとタイヤ/道路騒音の試験を規定しており、通過騒音試験と海岸騒音試験に厳しい要求が課せられます。試験機器は、特殊な測定方法をサポートし、試験規格によって定められた値を検証する必要があります。

当社のソリューションは、簡易適合性試験からマルチチャンネル診断まで、パスバイ試験の全範囲をカバーします。当社のすべてのパススルーソリューション(屋外または屋内)は、ISO 362、SAE J1470、ISO 13325、ISO 5130などの最も一般的な国際規格をサポートしています。

さらに、ビームフォーミングアレイの選択により、屋外でのサウンドマッピングが可能になり、車のサウンドに貢献するサウンドの位置を正確に特定できます。



システム提案

Vehicle outdoor pass-by system overview

PULSE自動車パスバイソリューションは、完全なPULSEデータ収集および分析プラットフォームです。LAN-XIデータ収集ハードウェア、絶対位置参照を与えるためのすれ違い関連アクセサリ(フォトセルなど ) 、 継続的な速度と位置情報を与えるための速度センサー(レーダー、GPSまたはその他のデバイス ) 、 環境パラメータを提供するための気象観測所などが含まれる。

システムは、適合性試験構成から車載車測定チャネルを備えた複数車構成まで対応しています。ワンマン運転にも対応している。

関連製品

4955型

フィールドパスバイ騒音ソフトウエア

ISO規格のフィールドパスバイ騒音試験や、車で測定したサウンドと車外騒音の相関測定に。

4971-H-041 型

1/2インチ自由音場型BNCマイクロホン:長期安定性、-50℃~125℃で動作

世界で最も長く計測用マイクロホンを開発し続けているブリュエル・ケアーのベストセラーマイクロホンです。BNC接続の自由音場型マイクロホンで、感度変化が1000年間経っても1dB未満という驚異の安定性を誇ります(20℃、乾燥状態における推定値)。高感度、広いダイナミックレンジと温度範囲での高精度測定用に設計されています。
