Pantograph Measurement System

HBK’s optical measurement solution consists of the QuantumX MXFS BraggMETER, the newLight optical FBG Heavy Duty Force Transducer FS66HDL and Heavy-duty Accelerometer FS65HDA. Related accessories ensure the transition from the high voltage to the inside of the cars.

chevron_left
chevron_right

Robust, Accurate and Stable Optical Technology

The main requirement for overhead line and pantograph monitoring are accurate measurements within a high-voltage environment (15 – 25 kV). Optical sensors are passive elements, and as their measurement principle is based on light, no active excitation of the sensors is needed. That means that there are no interferences with other operations during measurement.

Optical technology is immune to EM and RF interferences, and is, therefore, the perfect fit for catenary and pantograph measurements. Where electrical sensors fail, or need advanced protection methods, optical measurements are still reliable, accurate and stable.

The focus of the measurements via a fiber optic sensing system is the lateral displacement of the overhead contact wire, the momentary vertical contact forces, and the detection of impermissible force peaks and loss of contact.



Innotrans pantograph image

HBK's Fiber Bragg Grating (FBG) Pantograph Measurement System ensures:



  • Detection of the contact force relief on the pantograph
  • Measurement of the sideways movement of the contact wire
  • Detection of undesired peaks in contact force
  • The possibility of integrating all performed measurements with GPS for location
  • Continuous 24/7 operation with the definition of thresholds and triggering of instantaneous alarms when a critical condition is detected
  • Certified for fire safety with EN 45545
  • Compliance with EN 50317 (standard for measuring the pantograph contact line interaction)
  • Minimum influence in vehicle maintenance by using standard contact strips

1-FSOEM-1701

Pantograph Monitoring Solution

1-FSOEM-1701-01-01

FS66HDL Heavy Duty Force Sensor

1-FSOEM-1701-02-01

FS65HDA Heavy Duty Accelerometer

1-FSOEM-1701-03-01

Connection Box for Pantograph System

1-FSOEM-1701-04-01

Connection cable for Pantograph System

1-FSOEM-1701-05-01

Pantograph System Connectors Cleaner

1-MXFS8DI1/FC

QuantumX BraggMETER Module 8FC w/catman

Key Attributes: Pantograph System


Components

4 × FS65HDA Heavy Duty Accelerometers

4 × FS66HDL Heavy Duty Force Sensors

1 × Interconnection Box

1 × Interconnection Cable

1 × Cleaner Kit

Additional needs (not included)

1 × MXFS QuantumX BraggMETER Interrogator

Key Attributes: FS65HDA
Measurement range +/-20 g
Frequency range 0.5 ... 200 Hz
Sensitivity per FBG 40 pm/g
Resolution < 2 mg
Flatness < 10%
Operating temperature range –40 … 75°C
Temperature effect on sensitivity < 10%
Weight  34 g
Key Attributes: FS66HDL
Measurement range 0 … 500 N
Sensitivity per FBG 1.1 pm/N
Resolution < 1 N
Operating temperature range –20 … 75°C
Temperature effect on zero signal 0.1% of Cn/10°C
Temperature effect calibration factor 1% of Cn/10°C
Weight  99 g



FS66HDL Heavy-duty Force Transducer

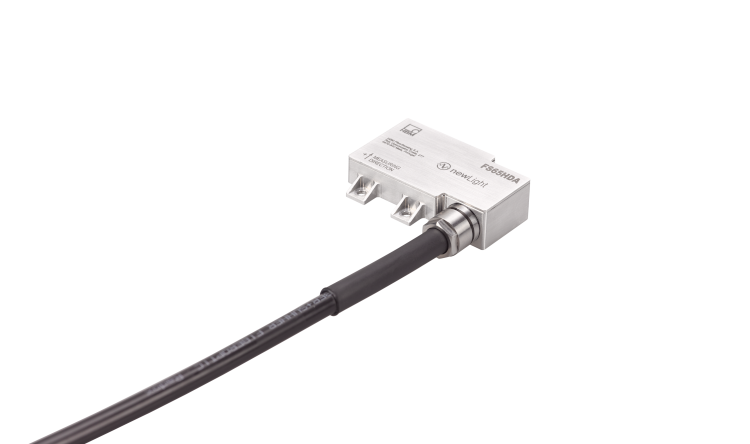

FS65HDA Heavy-duty Accelerometer

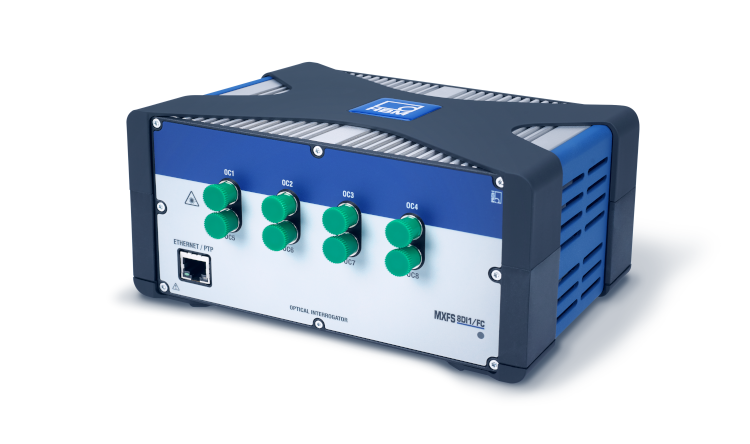

QuantumX MXFS BraggMETER



FS66HDL

FS65HDA

QuantumX MXFS Optical BraggMETER
